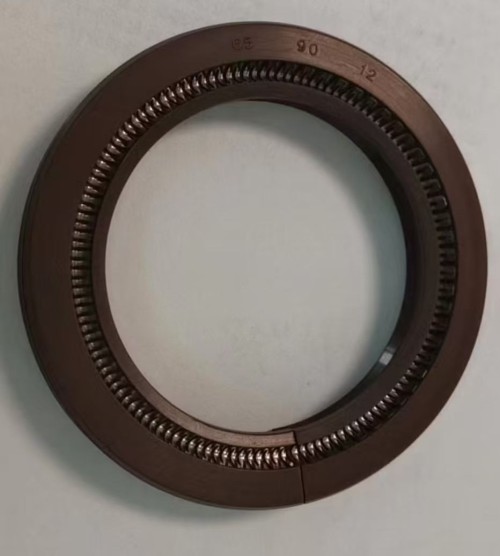

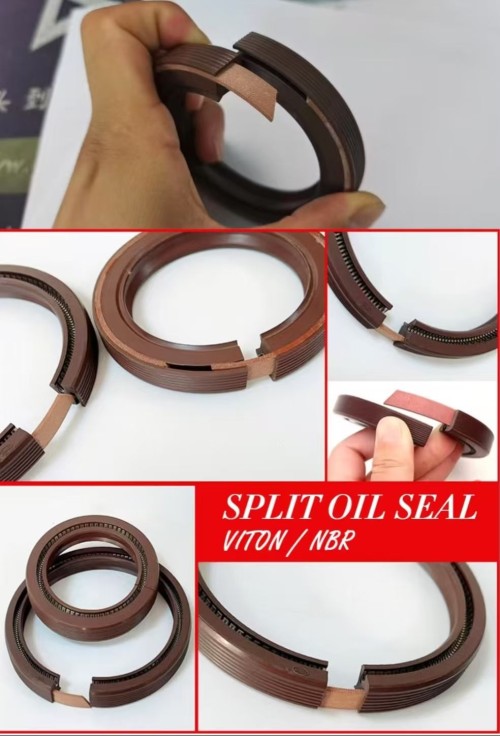

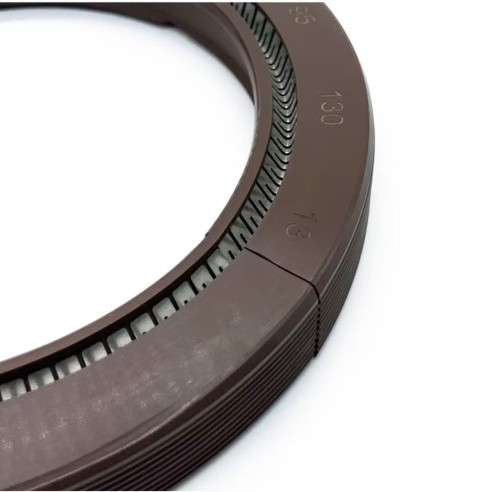

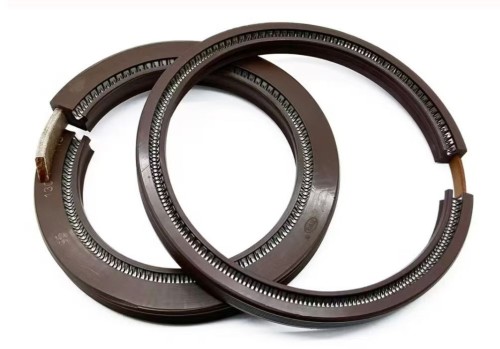

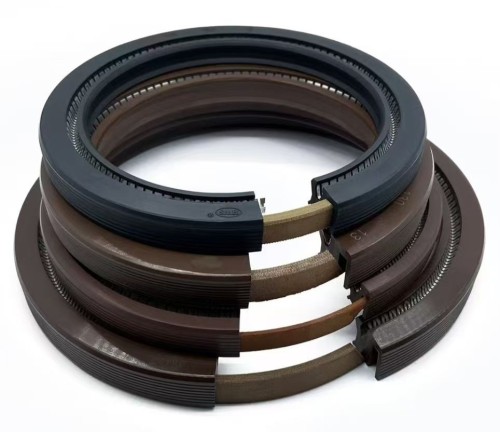

The split oil seal is made of FKM elastic ring, spring-energized PTFE + carbon ring, and phenolic wear-resistant ring. It is widely used in reduction boxes, blowers, crushers, condensers, rotary kilns, and air compressors. It can replace traditional skeleton oil seals. PU (slip ring) + PTFE/Carbon (spring self-tightening seal) + FKM (gasket) + stainless steel spring.

Material
PU + PTFE/Carbon + FKM + stainless steel spring

Technical data
Temperature: -30°C-+100°C
Pressure: 0.5MPa
Sliding speed: 8m/s

Advantages
1. No need to disassemble the device, convenient
2. Ensure grid stiffness and elasticity.
3. Low friction coefficient and long life.
4. The Z-shaped lip adopts imported springs, and the lip is lifted to follow the shaft.

Applications
(1) Speed ​​reducer
(2) Furnace blower
(3) Sintering plant crusher
(4) Continuous caster roller
(5) High-temperature rotary kiln
(6) Crane
(7) Air compressor

Installation steps 1) Open the hoop on the shaft and insert the other end of
the exposed skeleton groove 2) Let the interface face up, then push the seal into the cavity. How to order from us? 1. Contact DEF's salesman to get a quote (by email, phone, trade message) 2. Send the type and detailed description you require (material, size, quantity, color, special requirements, etc.) 3. Send you the price and other details, send the purchase order back for approval 4. After confirming the order and schedule, DEF will start the production procedure after receiving the payment. 5. If samples are required, please inform DEF in advance. 6. Make the seal 5~10 working days. 7. Quality inspection, if you need, DEF can send bulk order photos for approval before packaging. 8. Packing 9. Order shipment. 10. Any questions, please contact DEF after receiving the package. DEF will invest and negotiate a solution with you. 11. Quality and service are DEF principles. If you need more detailed information about our factory and products, please feel free to contact us.
